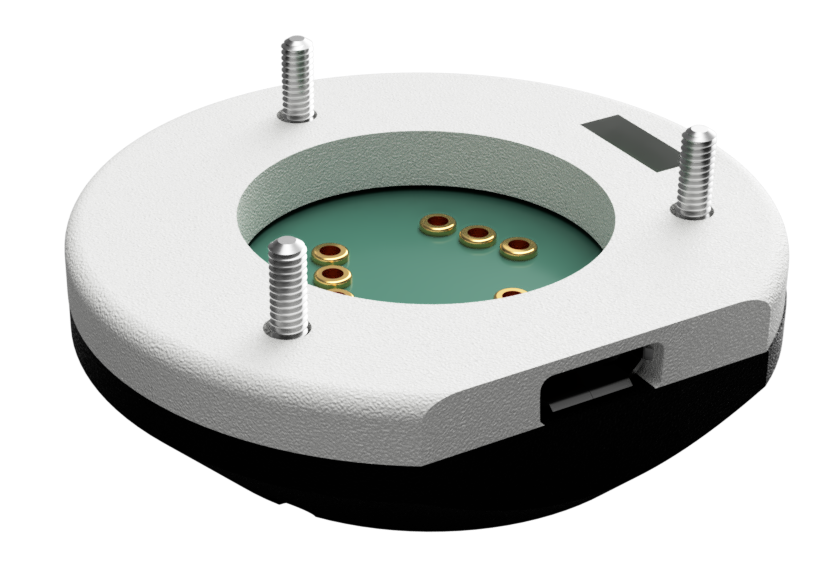

Evaluation Kit - I2C-USB 2.1
Compatible with the H2-CNI I2C-I FWB-A
Evaluation Kit - I2C-USB 2.1
Compatible with the H2-CNI I2C-I FWB-A

The evaluation kit is a device to controll and oversee the parameters of our sensors

The evaluation kit is a device to controll and oversee the parameters of our sensors
Key Features & Benefits
- PC connectivity
Direct connection to a USB port of a Windows® PC
No additional components required
Supports connection of only one sensor
- Power supply
Step-up converter generates 9V operating voltage
From standard 5V USB power
- I2C interface
Provides SDA and SCL lines
For internal I2C communication with the sensor
- Integrated components
Digital Temperature Sensor
Accuracy: ±1.0°C
Resolution: 12-bit
For ambient temperature measurement
- 1K-bit EEPROM
For storing configuration and calibration data
- Software requirements
PC with Windows®
LabVIEW® Runtime installed
SensorControl Software required for operation
Need a custom solution?
We offer customization options on existing sensors as well as custom
development of completely new sensors or features.
Tell us about your needs and we'll get back to you!
Key Features & Benefits
PC connectivity
- Direct connection to a USB port of a Windows® PC
- No additional components required
- Supports connection of only one sensor
Power supply
- Step-up converter generates 9V operating voltage from standard 5V USB power
I2C interface
- Provides SDA and SCL lines
- for internal I2C communication with the sensor
Integrated components
- Digital Temperature Sensor:
- Accuracy: ±1.0°C
- Resolution: 12-bit
- For ambient temperature measurement
1K-bit EEPROM
- For storing configuration and calibration data
Software requirements
- PC with Windows®
- LabVIEW® Runtime installed
- SensorControl Software required for operation
Need a custom solution?
We offer customization options on existing sensors as well as custom
development of completely new sensors or features.
Tell us about your needs and we'll get back to you!
