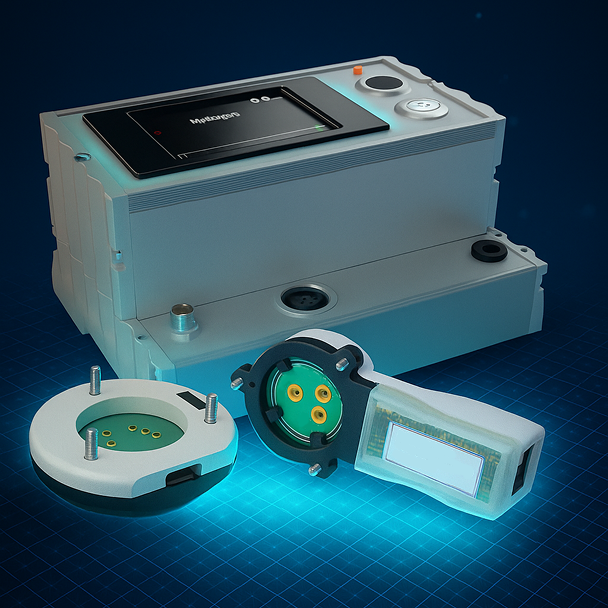

Accessories & Evaluation Kits
Support tools for setup, evaluation, and integration of FES hydrogen sensors
At FES Sensor Technology, we offer a tailored range of accessories and evaluationkits to complement our H2-CNI and H2-meTCD sensor families. Wether you are testing in a lab or integrating sensors into industrial environments, these tools ensure precise, repeatable measurements and seamless operation with your systems.
Accessories & Evaluation Kits
Support tools for setup, evaluation, and integration of FES hydrogen sensors
At FES Sensor Technology, we offer a tailored range of accessories and evaluationkits to complement our H2-CNI and H2-meTCD sensor families. Wether you are testing in a lab or integrating sensors into industrial environments, these tools ensure precise, repeatable measurements and seamless operation with your systems.

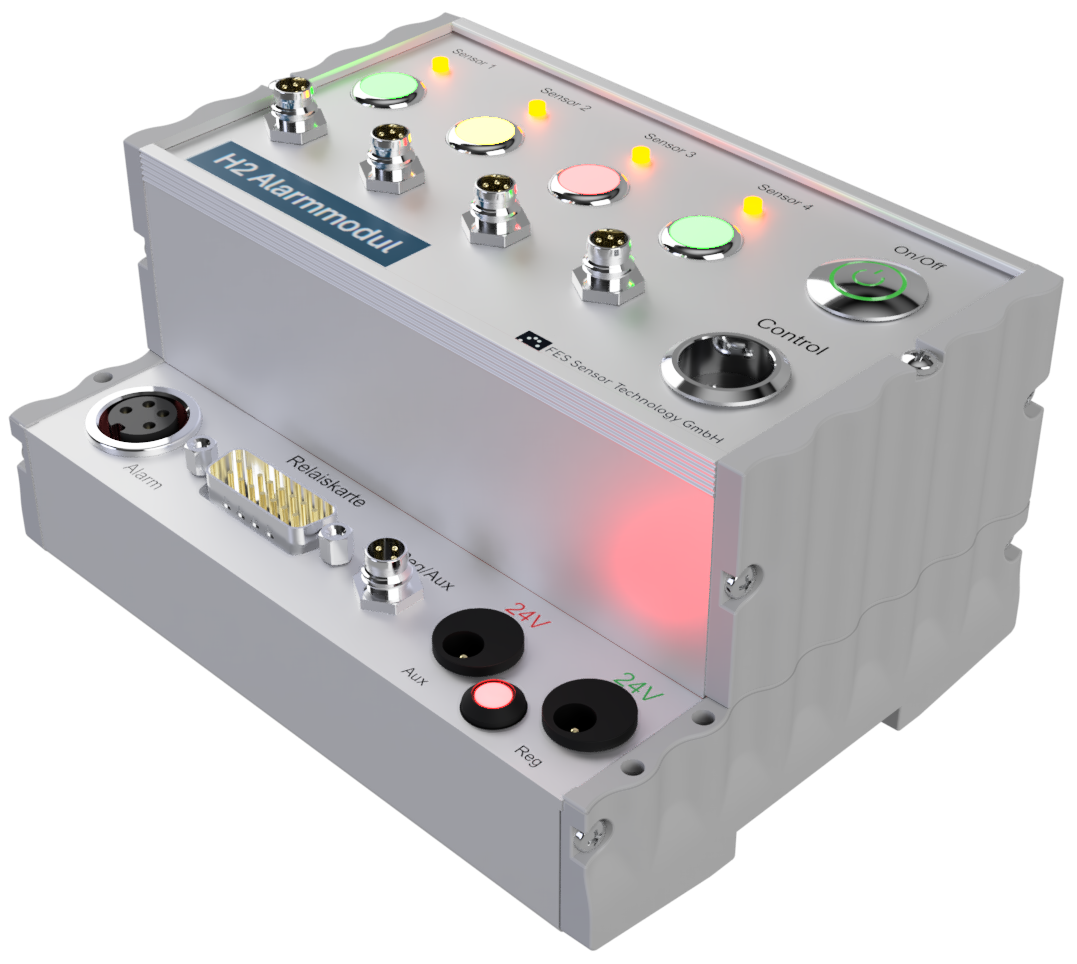

Alarm Device
Multi-Channel Sensor Monitoring
The H₂ alarm module provides reliable monitoring of up to four hydrogen sensors of type H2-CNI 0–10V-I and H2-meTCD 0–10V, making it ideal for safety-critical and industrial applications. Each sensor is powered by an independent supply voltage, ensuring high operational reliability.
The module supports a three-color 24 V LED warning light for clear visual alarm signaling. Factory default thresholds distinguish between normal operation, pre-alarm, and main alarm, allowing early detection of critical hydrogen concentrations. All alarm thresholds can be individually configured via the SensorControl software when connected to a Windows® PC through the Micro-USB interface.
Each sensor’s status is indicated directly on the module by four tri-color LEDs and can additionally be transmitted potential-free via the D-Sub 15 interface to an optional relay card. An automatic switchover between main and auxiliary 24 V power supplies ensures uninterrupted operation in case of power failure.
The robust housing made of anodized aluminum is designed for control cabinet installation and mounts easily on a DIN rail (TH 35). All connectors are located on the front panel, and an illuminated on/off switch provides safe and convenient operation.
Alarm Device
Multi-Channel Sensor Monitoring
The H₂ alarm module provides reliable monitoring of up to four hydrogen sensors of type H2-CNI 0–10V-I and H2-meTCD 0–10V, making it ideal for safety-critical and industrial applications. Each sensor is powered by an independent supply voltage, ensuring high operational reliability.
The module supports a three-color 24 V LED warning light for clear visual alarm signaling. Factory default thresholds distinguish between normal operation, pre-alarm, and main alarm, allowing early detection of critical hydrogen concentrations. All alarm thresholds can be individually configured via the SensorControl software when connected to a Windows® PC through the Micro-USB interface.
Each sensor’s status is indicated directly on the module by four tri-color LEDs and can additionally be transmitted potential-free via the D-Sub 15 interface to an optional relay card. An automatic switchover between main and auxiliary 24 V power supplies ensures uninterrupted operation in case of power failure.
The robust housing made of anodized aluminum is designed for control cabinet installation and mounts easily on a DIN rail (TH 35). All connectors are located on the front panel, and an illuminated on/off switch provides safe and convenient operation.

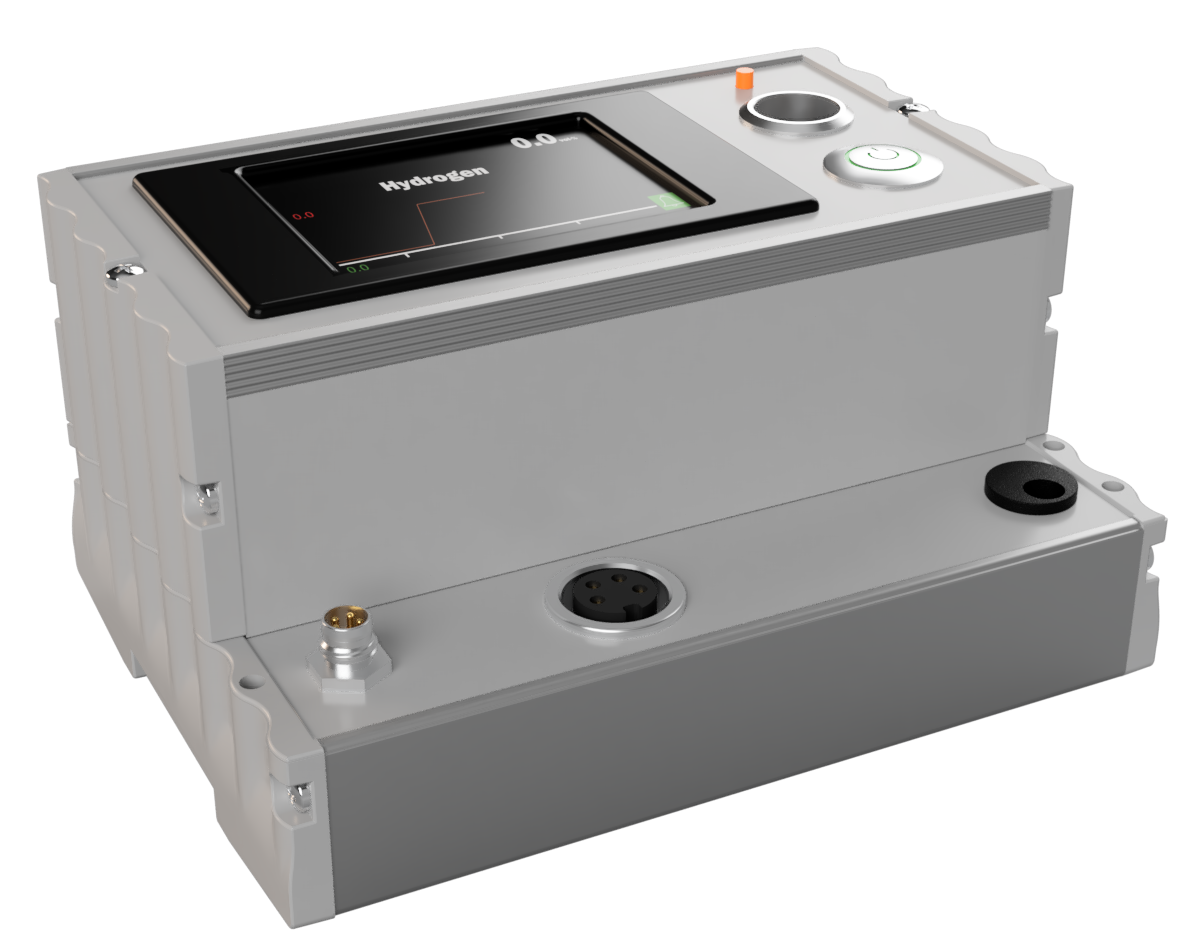

Measuring Device
Compact measurement and visualization unit for analog hydrogen sensors
Our hydrogen measuring device is designed for continuous operation of analog-output sensors (0-10V or 4-20mA) in monitoring and safety applications. It features a 2.4" TFT color display for live visualization of H2 volume fraction and signal transients, along with an integrated data logger for time-resolved recording of measurement data.
The unit includes relay outputs for alarm signaling via external 24V warning lights, supporting color-coded status indicators (green, yellow, red) based on configurable H2 thresholds. The housing is suitable for DIN-rail mounting and provides all electrical connections at the front panel, including sensor, power, alarm and USB interfaces.
Measuring Device
Compact measurement and visualization unit for analog hydrogen sensors
Our hydrogen measuring device is designed for continuous operation of analog-output sensors (0-10V or 4-20mA) in monitoring and safety applications. It features a 2.4" TFT color display for live visualization of H2 volume fraction and signal transients, along with an integrated data logger for time-resolved recording of measurement data.
The unit includes relay outputs for alarm signaling via external 24V warning lights, supporting color-coded status indicators (green, yellow, red) based on configurable H2 thresholds. The housing is suitable for DIN-rail mounting and provides all electrical connections at the front panel, including sensor, power, alarm and USB interfaces.
Evaluation Kits
Support for H2-CNI and H2-meTCD sensor testing and integration
The evaluation kits enable controlled operation and signal analysis of our calorimetric and thermal conductivity sensors in laboratory or development environments. Depending on the sensor type and output signal (analog or digital), various controller units are available. These provide excitation voltages, analog-to-digital conversion, programmable gain, temperature measurement and access to internal sensor buses.
All controllers are equipped with precision 16-bit data acquisition chains and status indicators for threshold-based hydrogen level detection. Most variants support connection via 1-wire interface to a PC and include EEPROMs for sensor-specific configuration data.
All evaluation kits are operated using our SensorControl software and require a bipolar power source module (SBPS-LDO 3.12) and bundled connection accessories.
Kits:

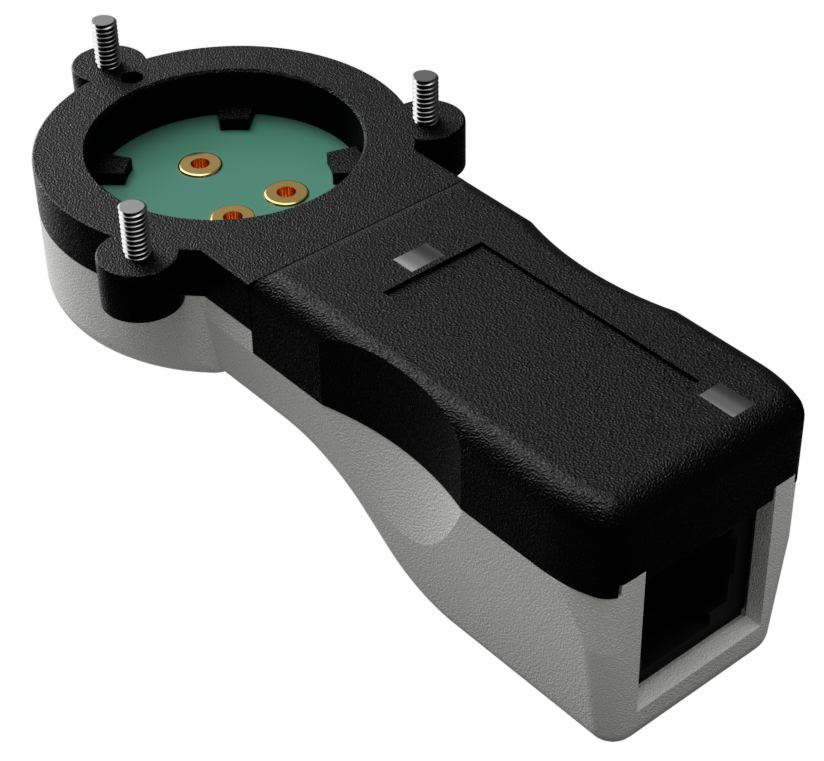

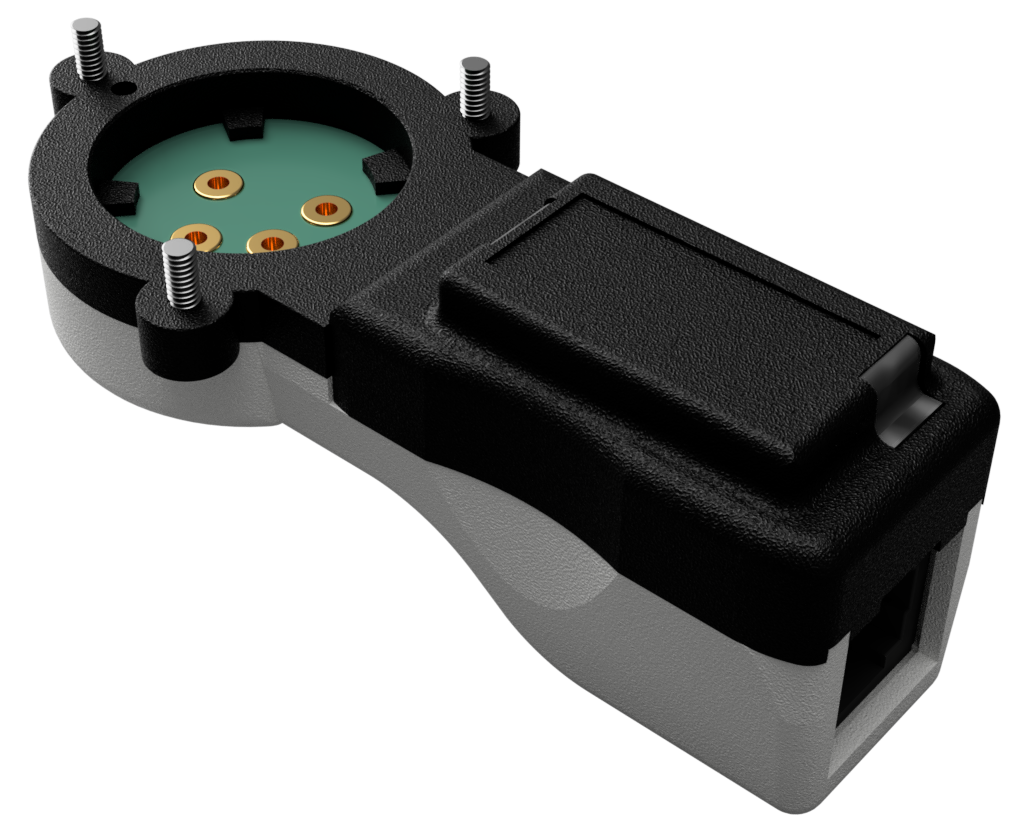

- PGA-ADC 3.4 and DCC-PGA-ADC 3.4 for H2-CNI 0-10V-I, H2-CNI 4-20mA-I, H2-meTCD 0-10V and H2-meTCD 4-20mA sensors

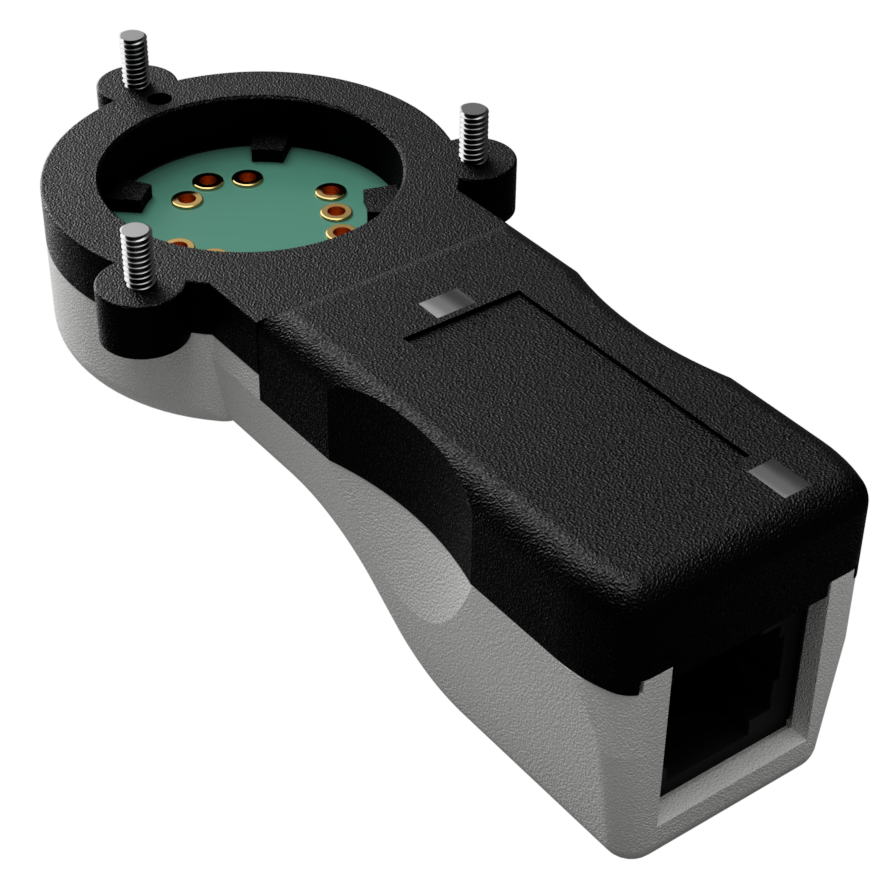

- TempSens 3.1 and I2C-USB 2.1 for H2-CNI I2C-I FWB-A and H2-meTCD I2C sensors
- PrecVS-PGA-ADC 3.6 for H2-CNI I2C-E ULTD sensors
- TCD-Controller 3.1 for H2-TCD I2C-I sensors
- I2C-USB 2.1 for H2-CNI I2C-I FWB-A and H2-meTCD I2C sensors
- I2C-USB 1.1 for H2-CNI 0-10V-I, H2-CNI 4-20mA-I, H2-meTCD 0-10V and H2-meTCD 4-20mA sensors
Evaluation Kits
Support for H2-CNI and H2-meTCD sensor testing and integration
The evaluation kits enable controlled operation and signal analysis of our calorimetric and thermal conductivity sensors in laboratory or development environments. Depending on the sensor type and output signal (analog or digital), various controller units are available. These provide excitation voltages, analog-to-digital conversion, programmable gain, temperature measurement and access to internal sensor buses.
All controllers are equipped with precision 16-bit data acquisition chains and status indicators for threshold-based hydrogen level detection. Most variants support connection via 1-wire interface to a PC and include EEPROMs for sensor-specific configuration data.
All evaluation kits are operated using our SensorControl software and require a bipolar power source module (SBPS-LDO 3.12) and bundled connection accessories.
Kits:
- PGA-ADC 3.4 and DCC-PGA-ADC 3.4 for H2-CNI 0-10V-I, H2-CNI 4-20mA-I, H2-meTCD 0-10V and H2-meTCD 4-20mA sensors
- TempSens 3.1 and I2C-USB 2.1 for H2-CNI I2C-I FWB-A and H2-meTCD I2C sensors
- PrecVS-PGA-ADC 3.6 for H2-CNI I2C-E ULTD sensors
- TCD-Controller 3.1 for H2-TCD I2C-I sensors
- I2C-USB 2.1 for H2-CNI I2C-I FWB-A and H2-meTCD I2C sensors
- I2C-USB 1.1 for H2-CNI 0-10V-I, H2-CNI 4-20mA-I, H2-meTCD 0-10V and H2-meTCD 4-20mA sensors

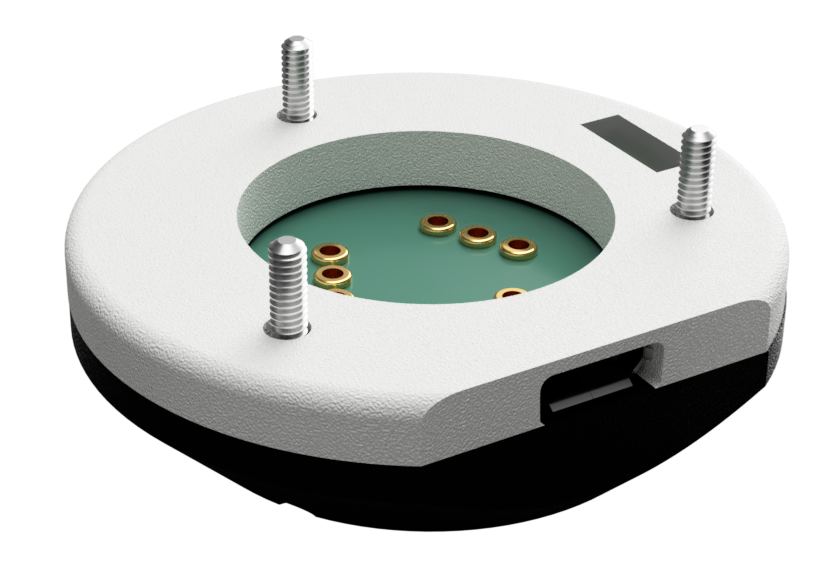

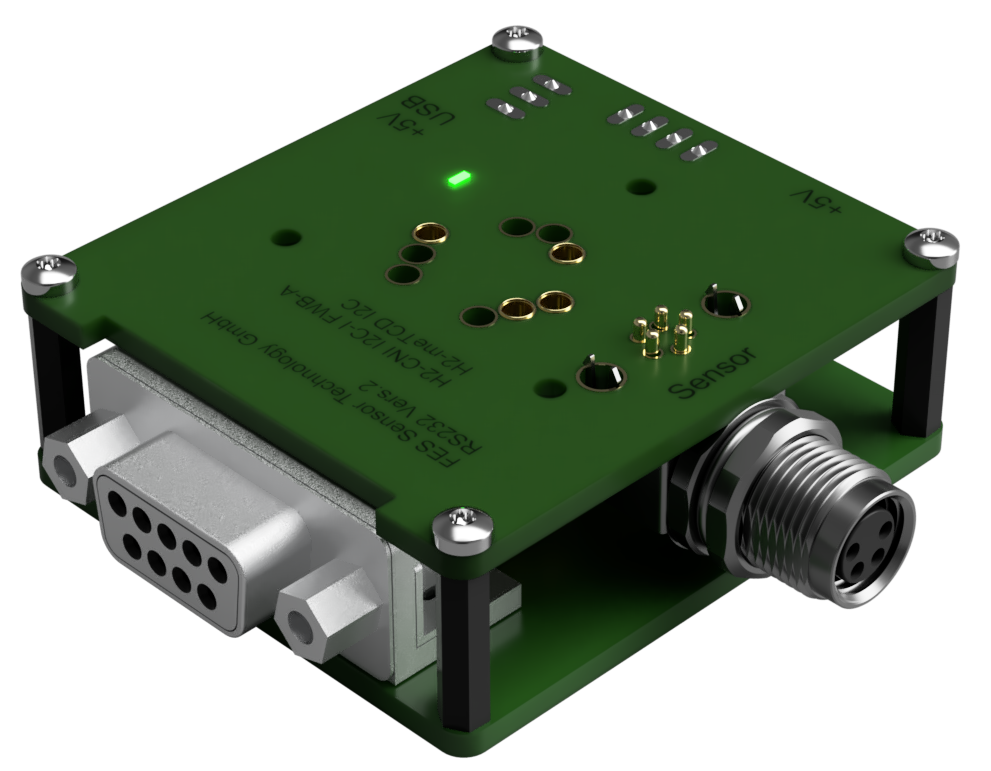

RS232-Adapter
Adapter for connecting digital hydrogen sensors to serial measurement systems.
The RS232 adapter enables easy and reliable connection of digital hydrogen sensors such as H2-CNI I2C-I FWB-A and H2-meTCD I2C to serial measurement and control systems. It bridges modern I2C-based sensor technology with RS232 communication, making it ideal for laboratory setups, test benches, and development environments.
RS232-Adapter
Adapter for connecting digital hydrogen sensors to serial measurement systems.
The RS232 adapter enables easy and reliable connection of digital hydrogen sensors such as H2-CNI I2C-I FWB-A and H2-meTCD I2C to serial measurement and control systems. It bridges modern I2C-based sensor technology with RS232 communication, making it ideal for laboratory setups, test benches, and development environments.

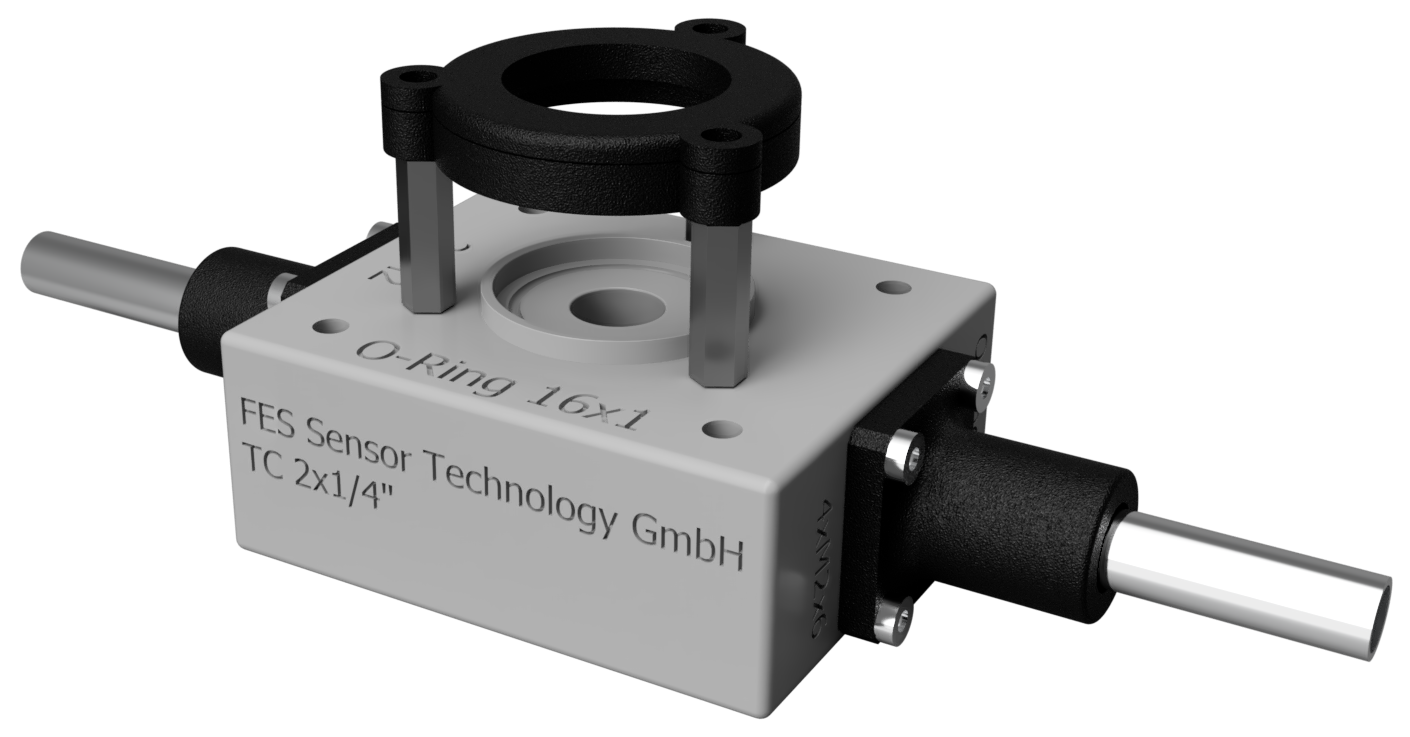

Test chamber
Compact test chamber for controlled hydrogen sensor evaluation
The TC 2×1/4” and TC 2×6 mm test chambers are designed for precise and efficient gas sensor characterization. Their very small internal volume and suitability for low flow rates enable fast, reproducible measurements while minimizing gas consumption.
When combined with our evaluation kits, the test chambers allow sensors (Ø 20 mm, height 16 mm) to be tested under defined gas compositions and controlled flow conditions. This makes them an ideal accessory for sensor development, laboratory testing, and application validation—from early-stage evaluation to final performance optimization.
Test chamber
Compact test chamber for controlled hydrogen sensor evaluation
The TC 2×1/4” and TC 2×6 mm test chambers are designed for precise and efficient gas sensor characterization. Their very small internal volume and suitability for low flow rates enable fast, reproducible measurements while minimizing gas consumption.
When combined with our evaluation kits, the test chambers allow sensors (Ø 20 mm, height 16 mm) to be tested under defined gas compositions and controlled flow conditions. This makes them an ideal accessory for sensor development, laboratory testing, and application validation—from early-stage evaluation to final performance optimization.
Sensor Plug
Industrial connector for reliable connection of analog hydrogen sensors.
The Plug provides a secure and reliable connection for our 0–10 V and 4–20 mA hydrogen sensors from the H2-CNI and H2-meTCD series. Depending on the sensor type, versions with four pins (Plug 3-4) or six pins (Plug 3-4-I2C) are available, featuring a shielded M8x1 female receptacle for interference-free signal transmission.
Designed for industrial environments, the connectors operate reliably across a wide temperature range from –40 °C to +85 °C. They ensure stable sensor integration in laboratory, industrial, and field applications while supporting fast installation and long-term operational reliability.
Sensor Plug
Industrial connector for reliable connection of analog hydrogen sensors.
The Plug provides a secure and reliable connection for our 0–10 V and 4–20 mA hydrogen sensors from the H2-CNI and H2-meTCD series. Depending on the sensor type, versions with four pins (Plug 3-4) or six pins (Plug 3-4-I2C) are available, featuring a shielded M8x1 female receptacle for interference-free signal transmission.
Designed for industrial environments, the connectors operate reliably across a wide temperature range from –40 °C to +85 °C. They ensure stable sensor integration in laboratory, industrial, and field applications while supporting fast installation and long-term operational reliability.
Accessory Overview
Accessory
Accessory type
Compatibility
Accessory
Accessory type
Compatibility
H2-Measuring Device
Measuring device
H2-CNI 4-20mA-I
H2-meTCD 4-20mA
H2-CNI 0-10V-I
H2-meTCD 0-10V
Measuring device
H2-CNI 4-20mA-I
H2-meTCD 4-20mA
H2-CNI 0-10V-I
H2-meTCD 0-10V
Test chamber
H2-CNI 4-20mA-I
H2-CNI 0-10V-I
H2-CNI I2C-E ULTD
H2-CNI I2C-I FWB-A
H2-meTCD 4-20mA
H2-meTCD 0-10V
H2-meTCD I2C
H2-TCD I2C-I
Test chamber
Test chamber
H2-CNI 4-20mA-I
H2-CNI 0-10V-I
H2-CNI I2C-E ULTD
H2-CNI I2C-I FWB-A
H2-meTCD 4-20mA
H2-meTCD 0-10V
H2-meTCD I2C
H2-TCD I2C-I
