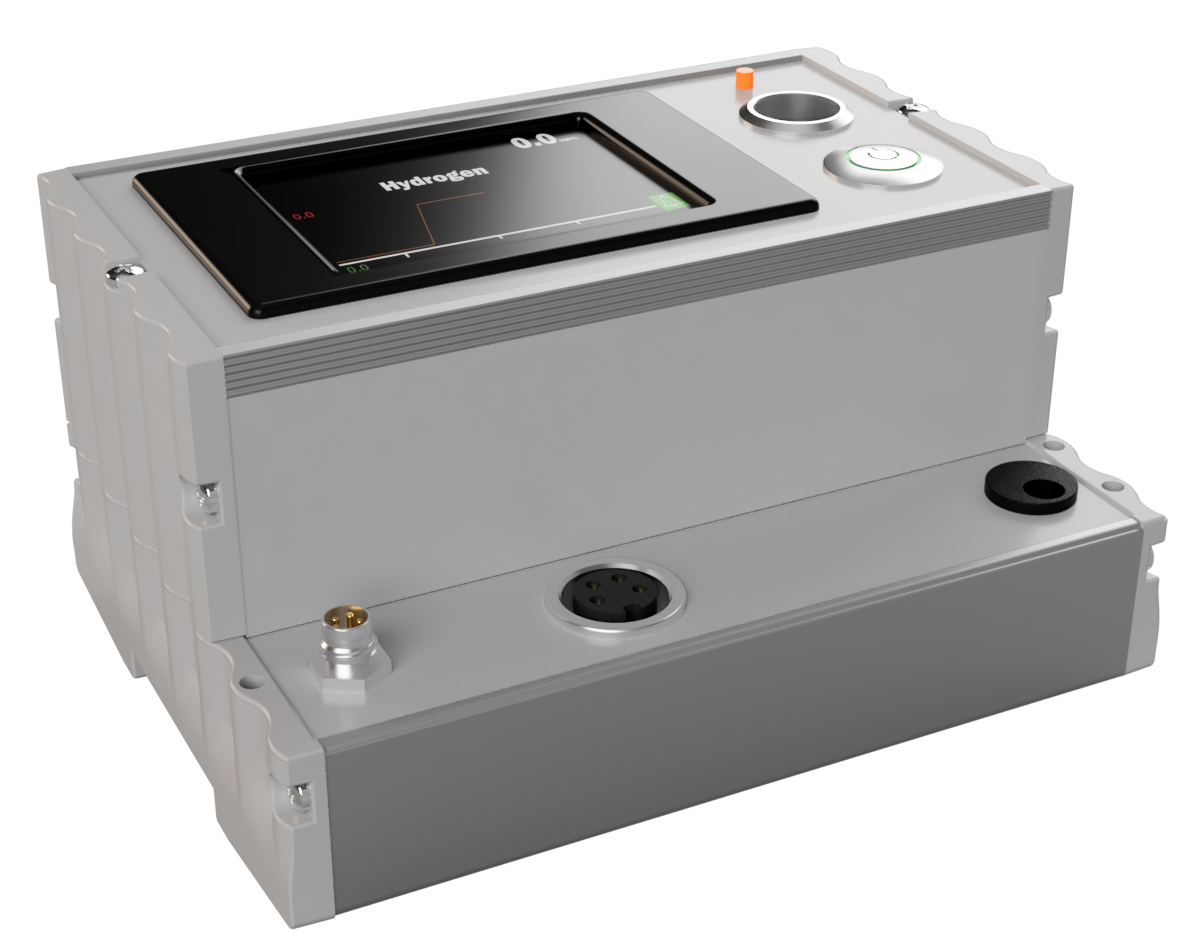

H2-Measuring Device
Compatible with the H2-CNI 4-20mA-I and H2-meTCD 4-20mA or H2-CNI 0-10V-I and H2-meTCD 0-10V
The H2-Measuring device is for accurately monitoring and displaying the measuring data of our hydrogen sensor. The device has a connector to control three-colored 24V-LED warning light.
Key Features & Benefits
Compact measurement and visualization unit for analog hydrogen sensors
Our hydrogen measuring device is designed for continuous operation of analog-output sensors (0-10V or 4-20mA) in monitoring and safety applications. It features a 2.4" TFT color display for live visualization of H2 volume fraction and signal transients, along with an integrated data logger for time-resolved recording of measurement data.
The unit includes relay outputs for alarm signaling via external 24V warning lights, supporting color-coded status indicators (green, yellow, red) based on configurable H2 thresholds. The housing is suitable for DIN-rail mounting and provides all electrical connections at the front panel, including sensor, power, alarm and USB interfaces.
Need a custom solution?
We offer customization options on existing sensors as well as custom
development of completely new sensors or features.
Tell us about your needs and we'll get back to you!
