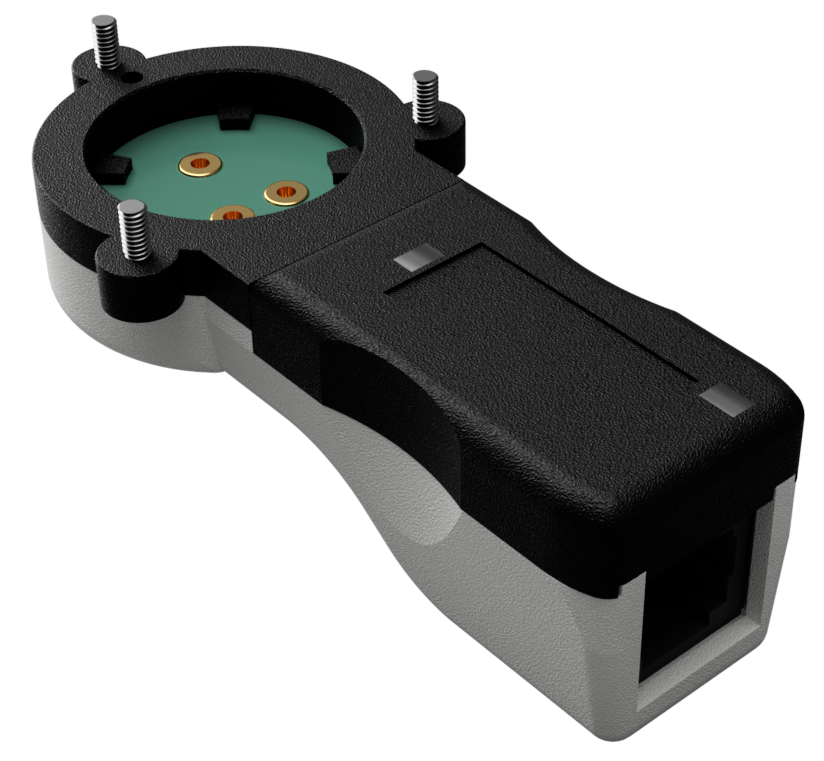

Evaluation Kit - PGA-ADC 3.4
Compatible with the H2-CNI 0-10V-I and H2-meTCD 0-10V
Evaluation Kit - PGA-ADC 3.4
Compatible with the H2-CNI 0-10V-I and H2-meTCD 0-10V

The evaluation kit is a device to controll and oversee the parameters of our sensors

The evaluation kit is a device to controll and oversee the parameters of our sensors
Key Features & Benefits
- Integrated DC-DC converter
Provides galvanic isolation between the sensor current loop and the 12 V supply voltage
- Precision, zero-drift programmable gain amplifier (PGA)
Selectable gain values:
0.125, 0.172, 0.25, 0.344, 0.5, 0.688, 1, 1.375, 2, 2.75, 4, 5.5, 8, 11, 16, 22, 32, 44, 64, 88, 128, 176 V/V
- 16-bit DS analog-to-digital converter (ADC)
Input current cancellation
- Bandgap reference with:
Very high accuracy
Low thermal drift (max. 10 ppm/°C)
- 1K-bit EEPROM
For storing calibration and adjustment data
- 3 switchable LEDs
Colors: Blue, Orange, Red
Serve as optical indicators for different hydrogen levels
For operation of PGA-ADC 3.4, an additional "Switchable Bipolar Power Source" SBPS-LDO 3.12 (together with an included 12V plug-in power supply) and a package of 1-wire-bus stick, two 6p6c-RJ12 cables, USB memory stick with all librariers and the software) is required. The evaluation kit is operated through a 1-wire bus connector with a personal computer, an installed LabVIEW® runtime and the SensorControl software.
