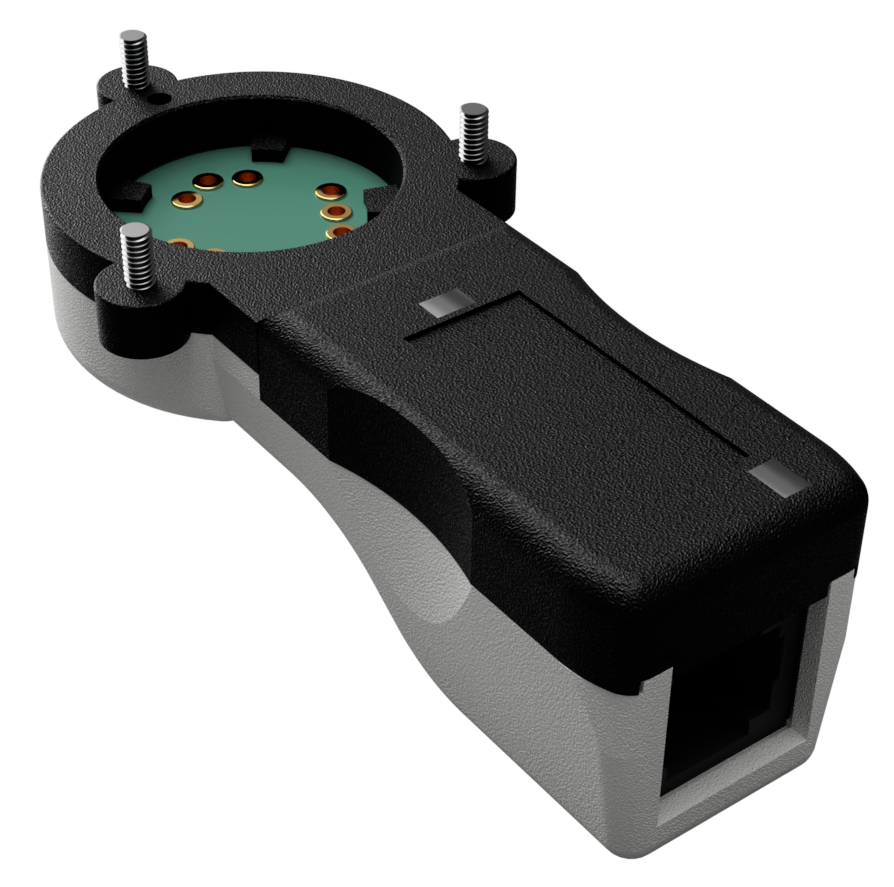

Evaluation Kit - PrecVS-PGA-ADC 3.6

Compatible with the H2-CNI I2C-E ULTD

Evaluation Kit - PrecVS-PGA-ADC 3.6

Compatible with the H2-CNI I2C-E ULTD

The evaluation kit is a device to controll and oversee the parameters of our sensors

The evaluation kit is a device to controll and oversee the parameters of our sensors

Key Features & Benefits


  • Adjustable 300-mA LDO voltage regulator


256-step adjustment

Provides excitation voltage up to 12 V for sensor



  • Wheatstone bridge completion


Contains the second branch of a Wheatstone bridge

64-position digital rheostat for bridge zeroing (part of second branch)



  • Bridge balance voltage measurement using:


Precision, zero-drift Programmable Gain Amplifier (PGA)

Selectable gain values:
0.125, 0.172, 0.25, 0.344, 0.5, 0.688, 1, 1.375, 2, 2.75, 4, 5.5, 8, 11, 16, 22, 32, 44, 64, 88, 128, 176 V/V



  • 16-bit analog-to-digital converter (ADC)


Input current cancellation

Bandgap reference with:

High accuracy

Low thermal drift (max. 10 ppm/°C)



  • Digital temperature sensor


Accuracy: ±1.0°C

Resolution: 12-bit

Measures ambient temperature



  • 1K-bit EEPROM


Electrically erasable PROM for calibration/configuration data



  • Provides SDA and SCL access lines


To communicate with the sensor's internal I2C bus

Allows access to:

Sensor EEPROM

Internal housing temperature sensor



For operation of PrecVS-PGA-ADC 3.6, an additional "Switchable Bipolar Power Source" SBPS-LDO 3.12 (together with an included 9V plug-in power supply) and a package of 1-wire-bus stick, two 6p6c-RJ12 cables, USB memory stick with all librariers and the software) is required. The evaluation kit is operated through a 1-wire bus connector with a personal computer, an installed LabVIEW® runtime and the SensorControl software.
