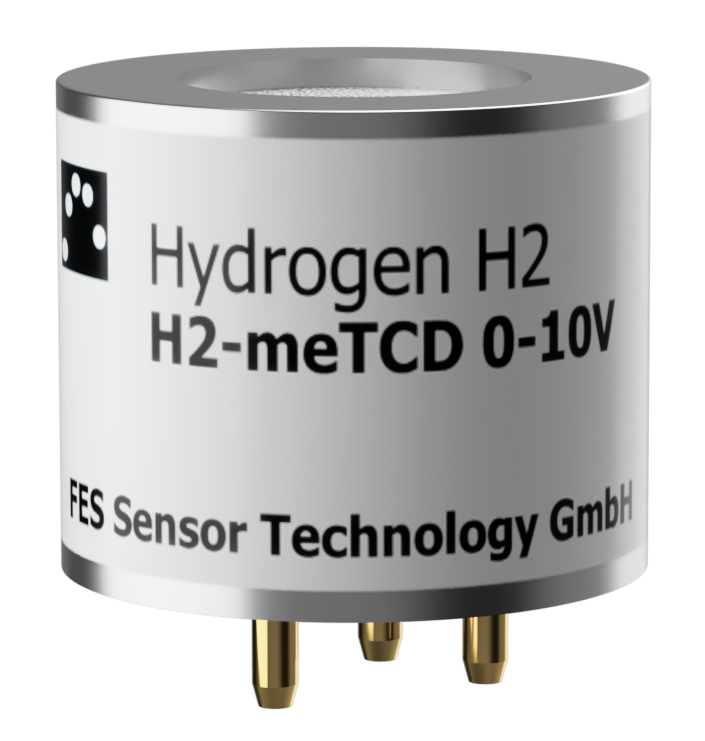

H2-meTCD 0-10V

High-precision, maintenance-free hydrogen detection

H2-meTCD 0-10V

High-precision, maintenance-free hydrogen detection

The H2-meTCD 0-10V offers a 0-10V output signal and I2C connectivity for adjusting zero-point and gain of the sensor. Based on a thermal conductivity operation principle. It is designed for use in a variety of applications which require an accurate hydrogen determination in nitrogen or other non oxygen-containing atmospheres.

The H2-meTCD 0-10V offers a 0-10V output signal and I2C connectivity for adjusting zero-point and gain of the sensor.. Based on a thermal conductivity operation principle. It is designed for use in a variety of applications which require an accurate hydrogen determination in nitrogen or other non oxygen-containing atmospheres.

Key Features & Benefits


  • Accurate measurement up to 100 vol-%


Detects hydrogen in air and nitrogen

Linear output up to 5 vol-%



  • Unmatched environmental robustness


Resistant to valatile siloxanes and carbon monoxide - common catalyst poisons

Operates in 0% to 100% relative humidity

Temperature range -20°C to +85°C



  • Fast, reversible reaction times



Enables rapid detection and clear recovery

Ideal for critical applications where reaction time matters



  • Built-in stability & protection


0-10V output signal

Reverse polarity and over-voltage protection for dependable integration



  • Engineered for longevity


Very low power consumption of < 10 mW

No regular maintenance required

Designed for years stable, continuious operation

Key Features & Benefits


Accurate measurement up to 100 vol-%


  • Detects hydrogen in air and nitrogen
  • Linear output up to 5 vol-%


Unmatched environmental robustness


  • Resistant to valatile siloxanes and carbon monoxide - common catalyst poisons
  • Operates in 0% to 100% relative humidity
  • Temperature range -20°C to +85°C


Fast, reversible reaction times



  • Enables rapid detection and clear recovery
  • Ideal for critical applications where reaction time matters


Built-in stability & protection


  • 0-10V output signal
  • Reverse polarity and over-voltage protection for dependable integration


Engineered for longevity


  • Very low power consumption of < 10 mW
  • No regular maintenance required
  • Designed for years stable, continuious operation

Pin Configuration

Pin 1

+12V positive supply voltage with respect to ground


Pin 2

Sensor signal with respect to ground


Pin 3

Ground of the internal electronics. The pin is electrically not connected to the housing


SCL

Clock line of the I2C bus, referenced to ground*


SDA

Data line of the I2C bus, referenced to ground*



*The sensor can be operated without connecting the I2C bus. If connected, provide necessary pull-up resistors to SCL and SDA (e.g. 4.7 kOhm).


Evaluation kit

For full accecibility for your sensor

Evaluation kit

For full accecibility for your sensor

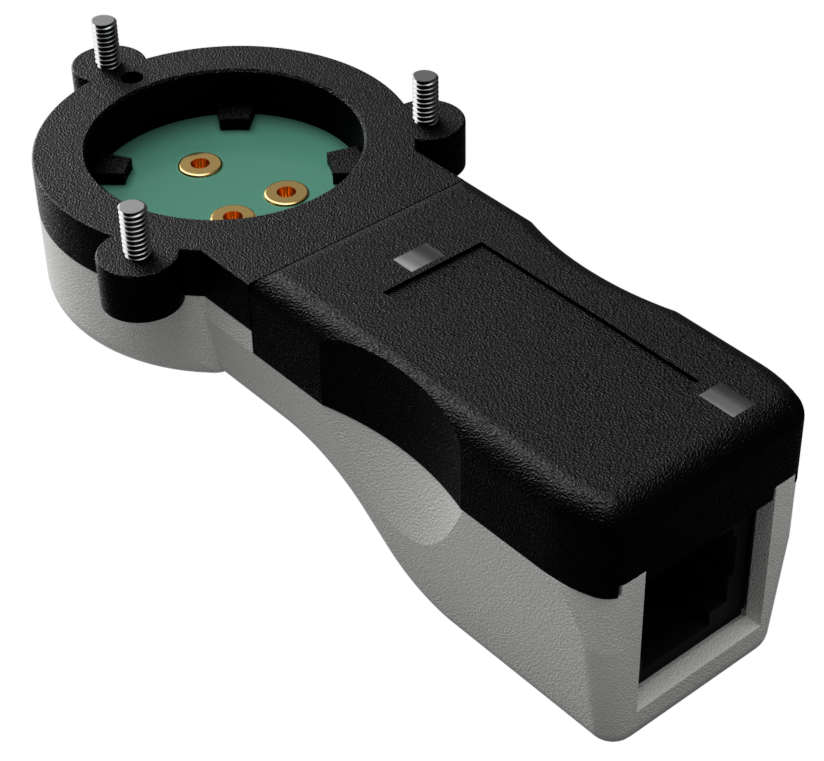

PGA-ADC 3.4

The evaluation kit enables controlled operation and signal analysis

PGA-ADC 3.4

The evaluation kit enables controlled operation and signal analysis
