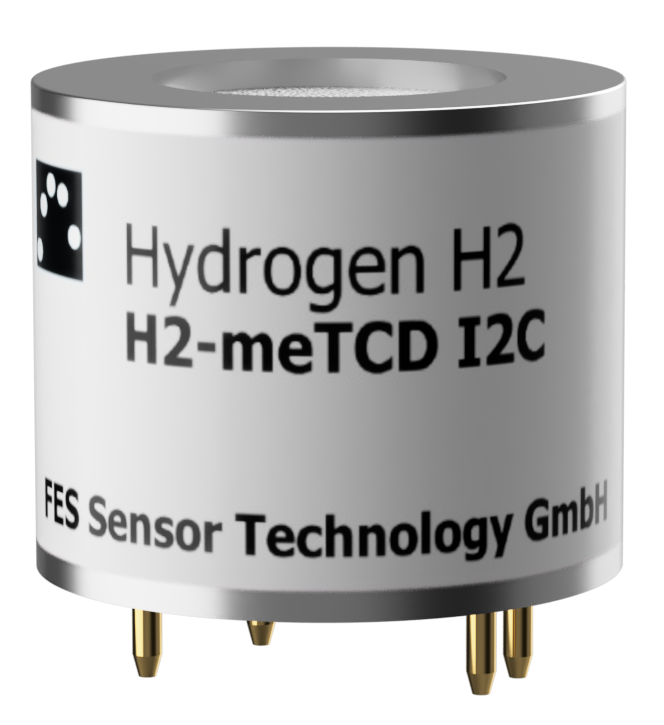

H2-meTCD I2C

High-precision, maintenance-free hydrogen detection

H2-meTCD I2C

High-precision, maintenance-free hydrogen detection

The H2-meTCD I2C is a rugged, industrial-grade hydrogen sensor with micro-etched sensing element. It contains the entire electronic circuitry for control and read-out through the I2C digital bus. Based on a thermal conductivity operation principle. It is designed for use in a variety of applications which require an accurate hydrogen determination in nitrogen or other non oxygen-containing atmospheres.

The H2-meTCD I2C is a rugged, industrial-grade hydrogen sensor with micro-etched sensing element. It contains the entire electronic circuitry for control and read-out through the I2C digital bus. Based on a thermal conductivity operation principle. It is designed for use in a variety of applications which require an accurate hydrogen determination in nitrogen or other non oxygen-containing atmospheres.

Key Features & Benefits


  • Accurate measurement up to 100 vol-%


Detects hydrogen in air and nitrogen



  • Unmatched environmental robustness


Operates in 0% to 100% relative humidity

Temperature range -20°C to +85°C



  • Fast, reversible reaction times



Enables rapid detection and clear recovery

Ideal for critical applications where reaction time matters



  • Control sensor characteristics


Digital temperature sensor

Programmable gain amplification

Zero-point setting



  • Engineered for longevity


Very low power consumption of < 10 mW

No regular maintenance required

Designed for years stable, continuious operation

Key Features & Benefits


Accurate measurement up to 100 vol-%


  • Detects hydrogen in air and nitrogen


Unmatched environmental robustness


  • Operates in 0% to 100% relative humidity
  • Temperature range -20°C to +85°C


Fast, reversible reaction times



  • Enables rapid detection and clear recovery
  • Ideal for critical applications where reaction time matters


Control sensor characteristics


  • Digital temperature sensor
  • Programmable gain amplification
  • Zero-point setting


Engineered for longevity


  • Very low power consumption of < 10 mW
  • No regular maintenance required
  • Designed for years stable, continuious operation

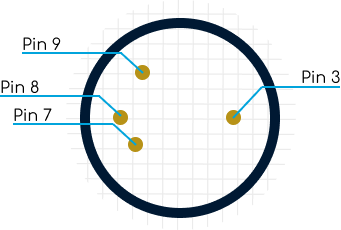

Pin Configuration

Pin Configuration

Pin 9

+6 V positive supply voltage with respect to ground


Pin 7

Ground of the internal electronics. The pin is electrically not connected to the

housing


Pin 3

Clock line of the I2C bus**


Pin 8

Data line of the I2C bus**



** If connected, provide necessary pull-up resistors to SCL and SDA (e.g. 4.7 kOhm).


Pin 9

+6 V positive supply voltage with respect to ground


Pin 7

Ground of the internal electronics. The pin is electrically not connected to the

housing


Pin 3

Clock line of the I2C bus**


Pin 8

Data line of the I2C bus**



** if connected, provide necessary pull-up resistors to SCL and SDA (e.g. 4,7kOhm).

Evaluation kit

For full accecibility for your sensor

Evaluation kit

For full accecibility for your sensor

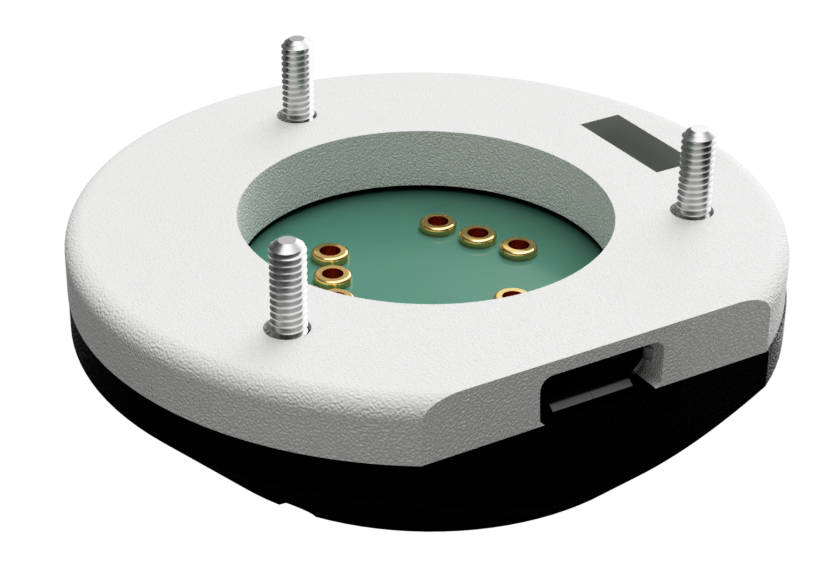

I2C-USB 2.1

The evaluation kit enables controlled operation and signal analysis

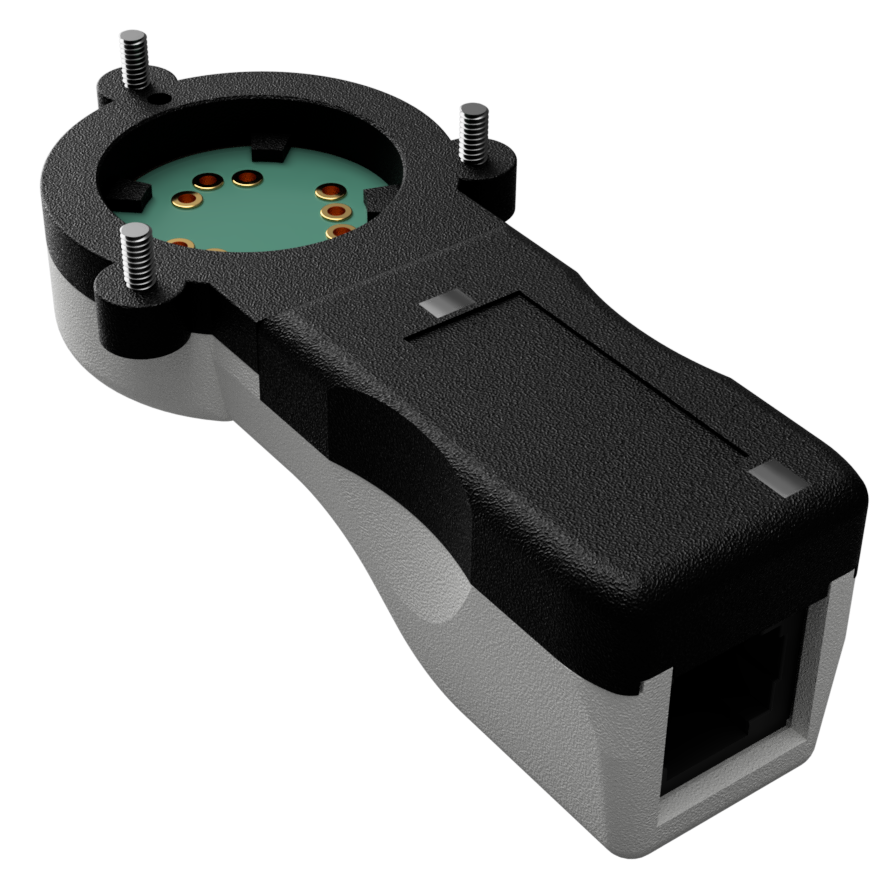

TempSens 3.1

The evaluation kit enables controlled operation and signal analysis

I2C-USB 2.1

The evaluation kit enables controlled operation and signal analysis

TempSens 3.1

The evaluation kit enables controlled operation and signal analysis
