Evaluation Kit - TCD-Controller 3.1

Compatible with the H2-TCD I2C-I

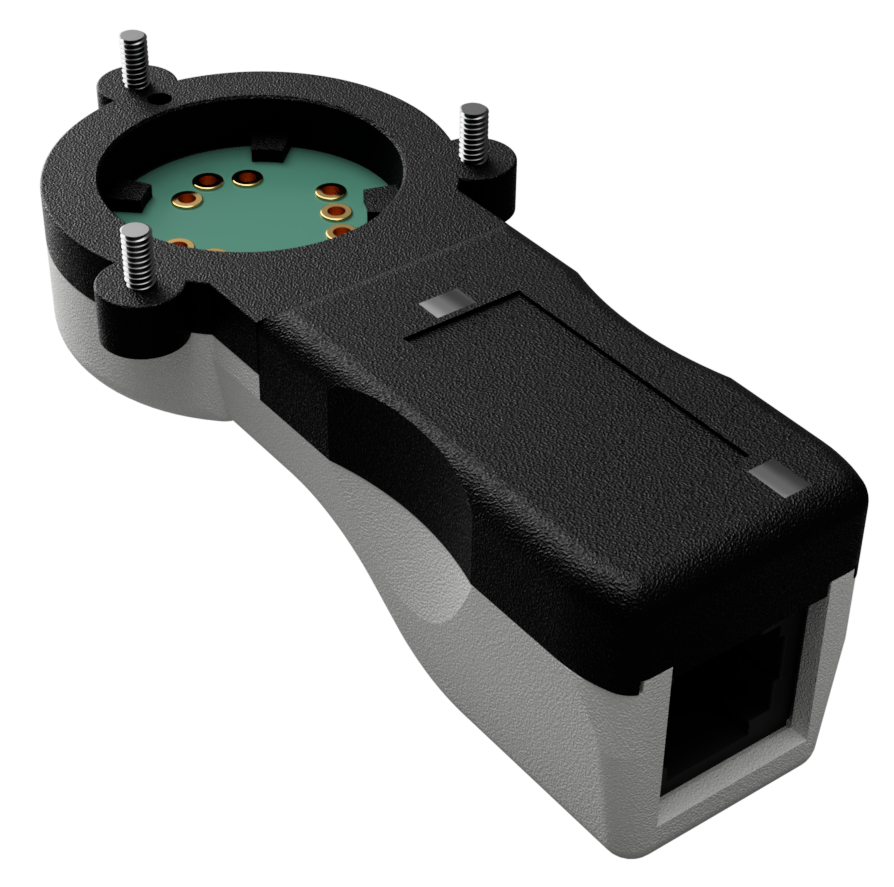

Evaluation Kit - TempSens 3.1

Compatible with the H2-TCD I2C-I

The evaluation kit is a device to controll and oversee the parameters of our sensors

The evaluation kit is a device to controll and oversee the parameters of our sensors

Key Features & Benefits


  • Provides I2C connectivity


SDA and SCL lines to access internal components of the sensor



  • Digital temperature Sensor


Accuracy: ±1.0°C

Resolution: 12-bit

Measures ambient temperature




  • 1K-bit EEPROM


For storing calibration and configuration data




For operation of TCD-Controller 3.1, an additional "Switchable Bipolar Power Source" SBPS-LDO 3.12 (together with an included 9V plug-in power supply) and a package of 1-wire-bus stick, two 6p6c-RJ12 cables, USB memory stick with all librariers and the software) is required. The evaluation kit is operated through a 1-wire bus connector with a personal computer, an installed LabVIEW® runtime and the SensorControl software. A second kit can be connected to SBPS-LDO 3.12.

Need a custom solution?


We offer customization options on existing sensors as well as custom

development of completely new sensors or features.


Tell us about your needs and we'll get back to you!

Key Features & Benefits


Provides I2C connectivity


  • SDA and SCL lines to access internal components of the sensor




Digital temperature sensor


  • Accuracy: ±1.0°C
  • Resolution: 12-bit
  • Measures ambient temperature



1K-bit EEPROM


  • For storing calibration and configuration data



For operation of TCD-Controller, an additional "Switchable Bipolar Power Source" SBPS-LDO 3.12 (together with an included 9V plug-in power supply) and a package of 1-wire-bus stick, two 6p6c-RJ12 cables, USB memory stick with all librariers and the software) is required. The evaluation kit is operated through a 1-wire bus connector with a personal computer, an installed LabVIEW® runtime and the SensorControl software. A second kit can be connected to SBPS-LDO 3.12.
