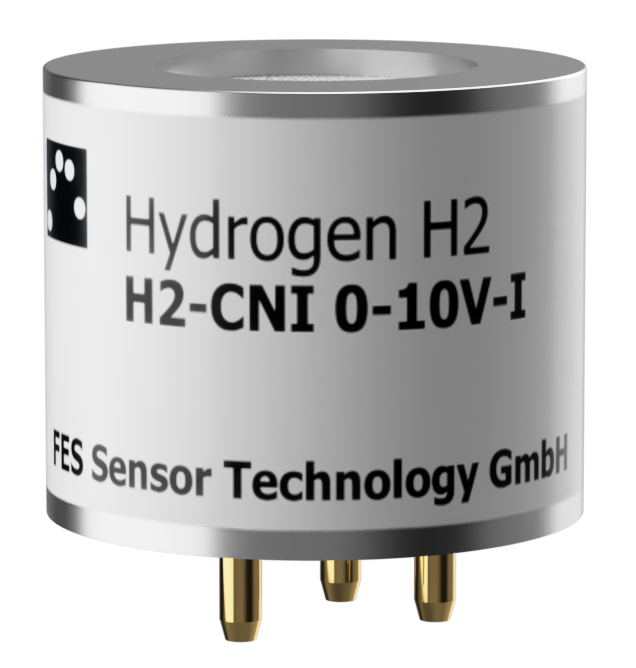

H2-CNI 0-10V-I

High-precision, maintenance-free hydrogen detection

H2-CNI 0-10V-I

High-precision, maintenance-free hydrogen detection

The H2-CNI 0-10V-I offers a 0-10V output signal and I2C connectivity for adjusting zero-point and gain of the sensor. Built on a catalytically active, siloxane-resistant element and operating on a non-isothermal calorimetric principle, this sensor delivers consistent performance from lab environments to real-world deployment.


The H2-CNI 0-10V-I offers a 0-10V output signal and I2C connectivity for adjusting zero-point and gain of the sensor. Built on a catalytically active, siloxane-resistant element and operating on a non-isothermal calorimetric principle, this sensor delivers consistent performance from lab environments to real-world deployment.

Key Features & Benefits


  • Accurate measurement up to 10 vol-%


Detects hydrogen in air with 100 ppm resolution

Linear response curve up to 10 vol-% LEL for simplified calibration and reliable readouts



  • Unmatched environmental robustness


Resistant to valatile siloxanes and carbon monoxide - common catalyst poisons

Operates in 0% to 100% relative humidity without baseline drift

Temperature range -40°C to +80°C



  • Fast, reversible reaction times



Enables rapid detection and clear recovery

Ideal for critical applications where reaction time matters



  • Built-in stability & protection


Integrated temperature compensation

Reverse polarity and over-voltage protection for dependable integration

Can be operated standalone, without I2C connectivity



  • Engineered for longevity


No regular maintenance required

Designed for years stable, continuious operation

Key Features & Benefits


Accurate measurement up to 10 vol-%


  • Detects hydrogen in air with 100 ppm resolution
  • Linear response curve up to 10 vol-% for simplified calibration and reliable readouts


Unmatched environmental robustness


  • Resistant to valatile siloxanes and carbon monoxide - common catalyst poisons
  • Operates in 0% to 100% relative humidity without baseline drift
  • Temperature range -40°C to +80°C


Fast, reversible reaction times



  • Enables rapid detection and clear recovery
  • Ideal for critical applications where reaction time matters


Built-in stability & protection


  • 4-20mA current-loop output with secure industrial interface
  • Integrated temperature compensation
  • Reverse polarity and over-voltage protection for dependable integration
  • Can be operated standalone, without I2C connectivity


Engineered for longevity


  • No regular maintenance required
  • Designed for years stable, continuious operation

Pin Configuration

Pin Configuration

Pin 1

+12V positive supply voltage with respect to ground


Pin 2

Sensor signal with respect to ground


Pin 3

Ground to the internal electronics. The pin is electrically not connected to the housing


SCL

Clock line of I2C bus, referenced to ground (pin 3)*


SDA

Data line of I2C bus, referenced to ground (pin 3)*



*The sensor can be operated without connecting the I2C bus. If connected, provide necessary pull-up resistors to SCL and SDA (e.g. 4.7 kOhm).

Pin 1

+12V positive supply voltage with respect to ground


Pin 2

Sensor signal with respect to ground


Pin 3

Ground to the internal electronics. The pin is electrically not connected to the housing


SCL

Clock line of I2C bus, referenced to ground (pin 3)*


SDA

Data line of I2C bus, referenced to ground (pin 3)*



*The sensor can be operated without connecting the I2C bus. If connected, provide necessary pull-up resistors to SCL and SDA (e.g. 4.7 kOhm).

Evaluation kit

For full accecibility for your sensor

Evaluation kit

For full accecibility for your sensor

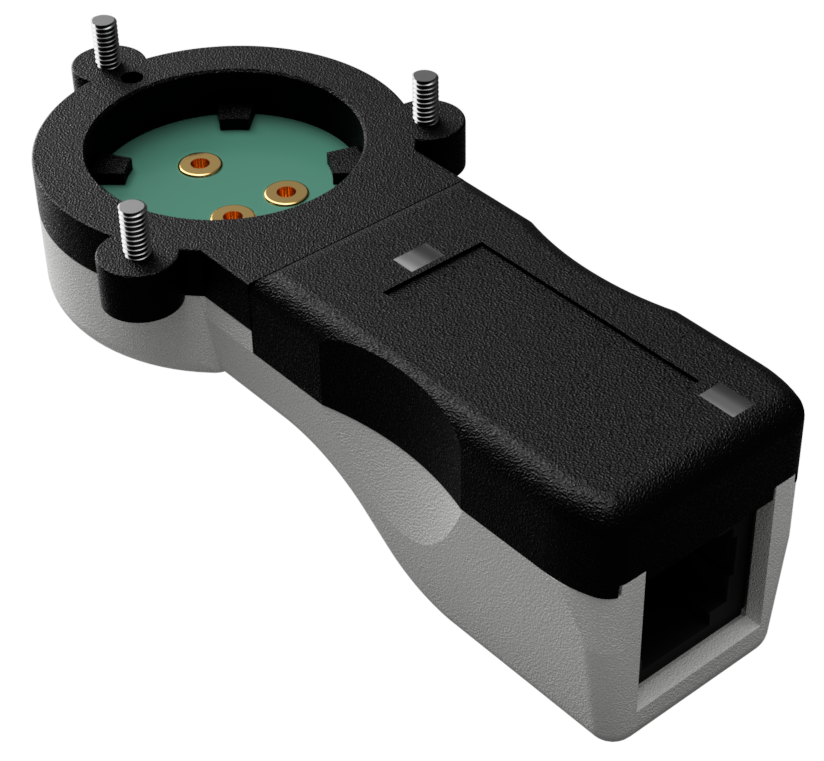

PGA-ADC 3.4

The evaluation kit enables controlled operation and signal analysis

PGA-ADC 3.4

The evaluation kit enables controlled operation and signal analysis
